12 Volt DC Circular Electromagnets
small AEC logo

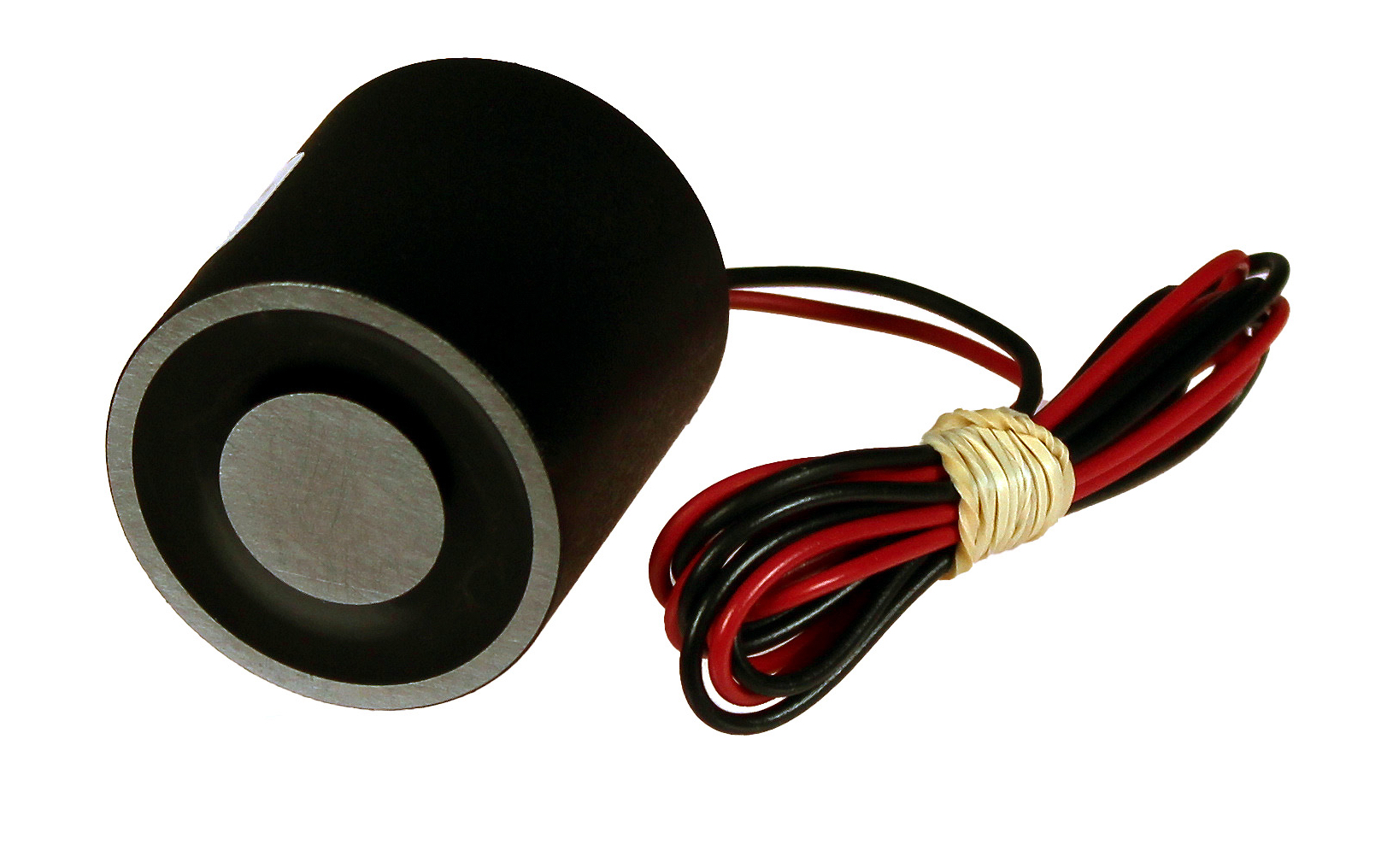

12 Volt DC Circular Electromagnets

AEC Magnetics

Subject 6Small circular electromagnets are ideally suited for automated parts handling and packaging operations but they have many other uses. Controlled by a 12-volt power supply, AEC 12-volt DC circular electromagnets have none of the maintenance, noise or air pressure requirements of vacuum cups or grippers.    AEC rugged, high-powered electromagnets have durable steel cases and hand-wound premium copper coils and are sealed in high temperature epoxy for years of maintenance-free service. Please give us a call if you have any questions.

AEC industrial magnetics specialists will help you select your magnet and provide technical support.

Sort by
Product Name +/-
Page 1 of 2
Results 1 - 24 of 46

12 Volt DC Circular Electromagnets

Number PDF Diameter Height Threads C to C Volts Watts Cord Weight Power
CE-050-12C View 0.50 0.50 6-32 - 12 1.8 0.1 2
CE-075-12C View 0.75 0.75 6-32 - 12 2.4 0.1 7
CE-100-12C View 1.00 1.00 1/4-20 - 12 3.6 0.3 19
CE-125-12C View 1.25 1.25 1/4-20 - 12 3.6 0.8 70
CE-150-12C View 1.50 1.50 1/4-20 - 12 5.0 1.0 110
CE-200-12C View 2.00 2.00 1/4-20 - 12 4.5 1.2 170
CEA-075-12C View 0.75 0.50 6-32 - 12 3.8 0.1 4
CEA-100-12C View 1.00 0.75 1/4-20 - 12 3.6 0.2 12
CEA-125-12C View 1.25 0.75 1/4-20 - 12 3.6 0.7 60
CEA-150-12C View 1.50 1.00 1/4-20 - 12 4.8 0.8 80
CEA-200-12C View 2.00 1.50 1/4-20 - 12 6.5 1.0 160
CEA-250-12C View 2.50 2.00 1/4-20 - 12 8.0 2.0 320
CEA-300-12C View 3.00 2.00 1/4-20 - 12 10.0 3.8 370
CES-150-12C View 1.50 0.75 1/4-20 - 12 5.0 0.6 70
CES-200-12C View 2.00 0.75 1/4-20 - 12 7.0 0.8 120
CES-250-12C View 2.50 0.75 1/4-20 0.75 12 7.2 1.5 200
CES-300-12C View 3.00 0.75 1/4-20 1.00 12 18.0 3.0 290
CS-250-12C View 2.50 1.50 1/4-20 - 12 10.0 2.0 300
CSA-100-12C View 1.00 0.75 10-32 - 12 3.0 0.2 12
CSA-200-12C View 2.00 1.63 1/4-20 - 12 5.2 1.5 140
CSA-250-12C View 2.50 1.25 1/4-20 - 12 10.0 2.0 250
CSL-075-12C View 0.75 1.25 6-32 - 12 1.5 0.2 8
CSL-100-12C View 1.00 1.25 10-32 - 12 4.5 0.3 30
DC-075-12C View 0.75 0.75 6-32 - 12 2.4 0.1 7
Page 1 of 2
