CEA-1000S-110C
Description

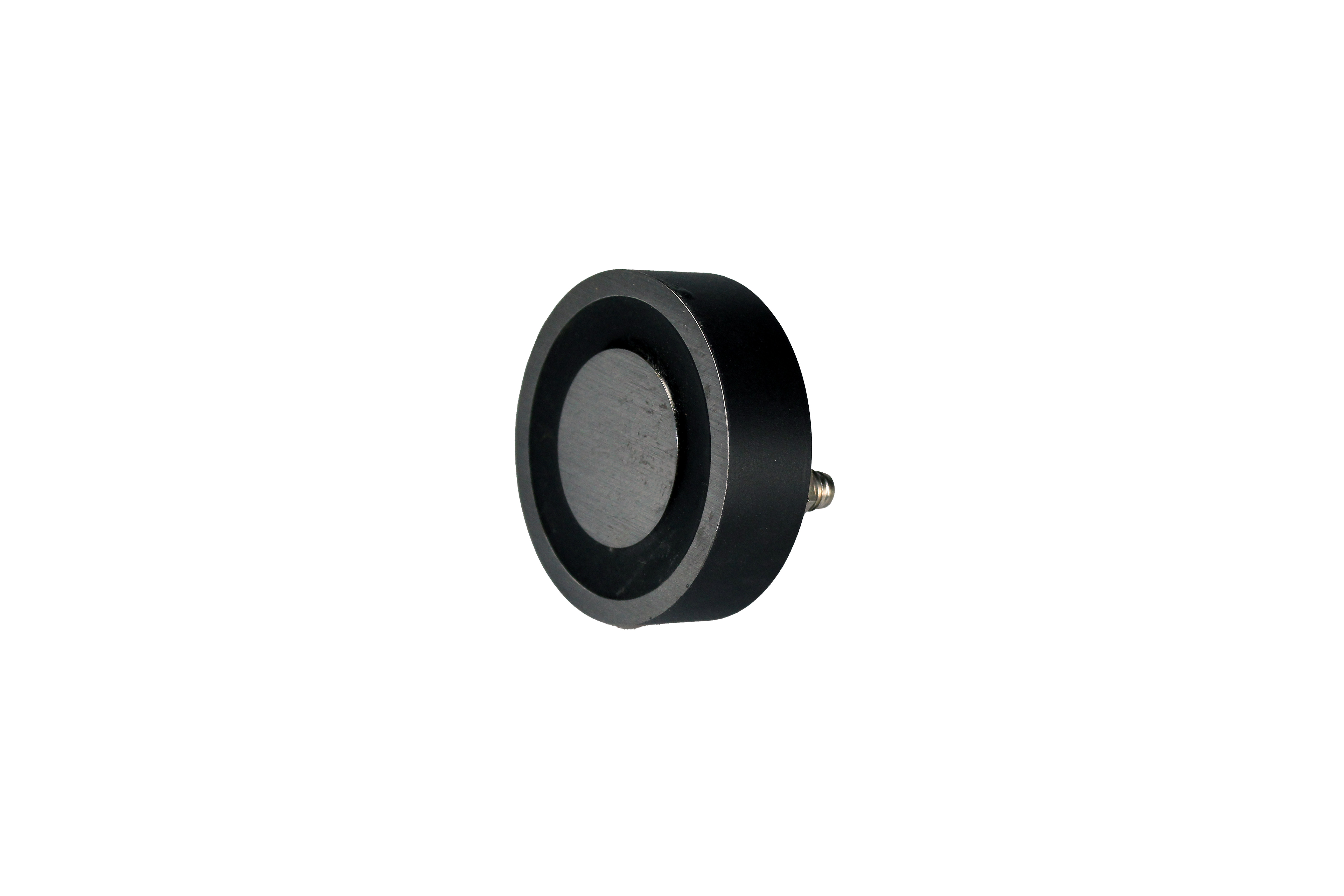

Check out our CEA-1000S-110C Heavy Duty Round 110-Volt DC electromagnet. It delivers 4700 pounds of holding power, working best on smooth, flat ferrous surfaces. Use it to lift, position or hold. The magnet is 10.1 inches in diameter, 2.5 inches in height and has a 5/8-11 thread on 3.0 inch centers. The CEA-1000S-110 C draws 61 watts, weighs 45.0 pounds and uses an AEC S-style cord. For the CEA-1000S-110C engineering drawing, please click on View PDF. Call us with questions, our AEC engineers are here to assist in your selection of electromagnets, permanent magnets, power solutions and repair.
Check out our CEA-1000S-110C Heavy Duty Round 110-Volt DC electromagnet. It delivers 4700 pounds of holding power, working best on smooth, flat ferrous surfaces. Use it to lift, position or hold. The magnet is 10.1 inches in diameter, 2.5 inches in height and has a 5/8-11 thread on 3.0 inch centers. The CEA-1000S-110 C draws 61 watts, weighs 45.0 pounds and uses an AEC S-style cord. For the CEA-1000S-110C engineering drawing, please click on View PDF. Call us with questions, our AEC engineers are here to assist in your selection of electromagnets, permanent magnets, power solutions and repair.
Diameter (in)
10.1
Height (in)
2.50
Weight (lb)
45.0
Center to Center
3
Volts
110
Threads
5/8-11
Watts
61
Power
4700
Cord
S-STYLE
