24 Volt DC Circular Electromagnets
small AEC logo

24 Volt DC Circular Electromagnets

AEC Magnetics

24v1

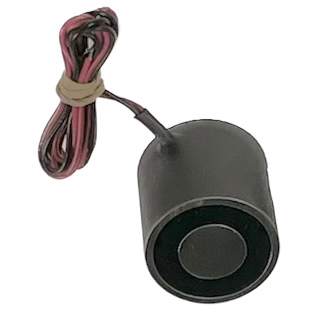

Small circular 24 volt DC electromagnets are ideally suited for automated parts handling and packaging operations and so much more. Featuring 24-volt power supplies, you will find these AEC magnets quieter and less expensive to operate than pneumatic vacuum cups or grippers. The CE-series models have top wire outlets.  The DC-series models have side wire outlets.  AEC circular electromagnets are the smart choice when you are lifting, position or hold a ferrous materials.  Please call us, we are here to discuss your application.

AEC Magnetics manufactures electromagnets at its Cincinnati, Ohio, facililty.

Sort by
Product Name +/-
Page 1 of 2
Results 1 - 24 of 45

24 Volt DC Circular Electromagnets

Number PDF Diameter Height Threads C to C Volts Watts Cord Weight Power
CE-075-24C View 0.75 0.75 6-32 - 24 4.8 0.20 9
CE-100-24C View 1.00 1.00 1/4-20 - 24 8.2 0.25 22
CE-125-24C View 1.25 1.25 1/4-20 - 24 8.2 0.75 70
CE-150-24C View 1.50 1.50 1/4-20 - 24 9.6 1.00 110
CE-200-24C View 2.00 2.00 1/4-20 - 24 12.8 1.20 230
CEA-075-24C View 0.75 0.50 6-32 - 24 3.0 0.09 5
CEA-100-24C View 1.00 0.75 1/4-20 - 24 8.2 0.20 15
CEA-125-24C View 1.25 0.75 1/4-20 - 24 8.2 0.50 60
CEA-150-24C View 1.50 1.00 1/4-20 - 24 9.9 0.80 100
CEA-200-24C View 2.00 1.50 1/4-20 - 24 14.4 1.00 220
CEA-250-24C View 2.50 2.00 1/4-20 - 24 14.0 2.00 380
CEA-300-24C View 3.00 2.00 1/4-20 1.00 24 20.0 3.75 440
CES-150-24C View 1.50 0.75 1/4-20 - 24 5.0 0.60 70
CES-200-24C View 2.00 0.75 1/4-20 - 24 7.0 0.75 120
CES-250-24C View 2.50 0.75 1/4-20 0.75 24 11.5 1.50 200
CES-300-24C View 3.00 0.75 1/4-20 1.00 24 18.0 3.00 290
CS-250-24C View 2.50 1.50 1/4-20 - 24 7.0 2.00 300
CSA-100-24C View 1.00 0.75 10-32 - 24 3.0 0.20 15
CSA-200-24C View 2.00 1.63 1/4-20 - 24 5.2 1.50 170
CSA-250-24C View 2.50 1.25 1/4-20 - 24 10.0 2.00 250
CSL-075-24C View 0.75 1.25 10-32 - 24 3.0 0.15 8
CSL-100-24C View 1.00 1.25 10-32 - 24 4.4 0.25 30
DC-075-24C View 0.75 0.75 6-32 - 24 3.8 0.10 9
DC-100-24C View 1.00 1.00 1/4-20 - 24 8.2 0.25 22
