CSA-200-24C
Description

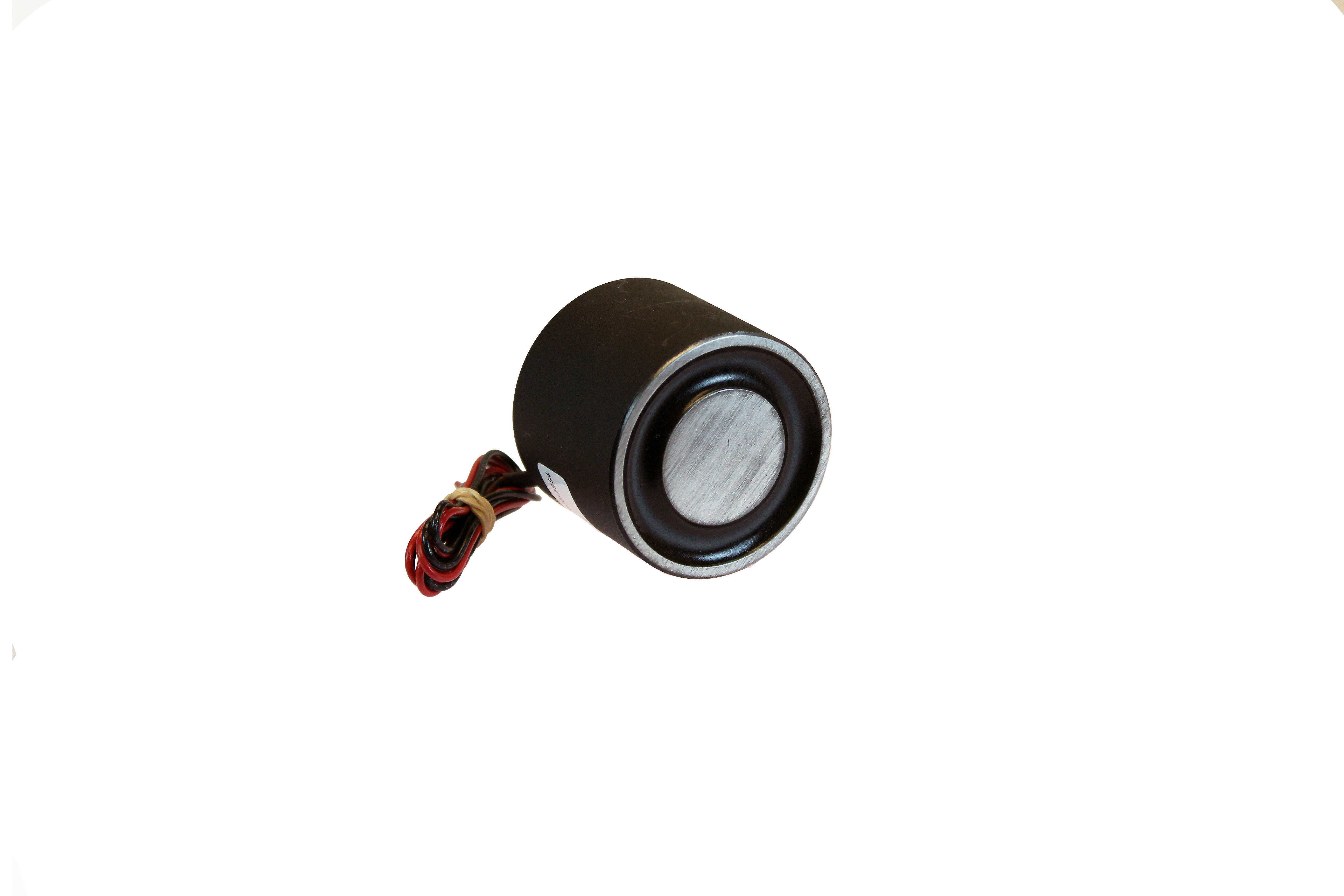

If it's magnetic...you're at the right place! AEC Magnetics builds superior electromagnets in virtually any power configuration, size and holding power. These small circular electros are tremendous addition to automated parts handling and packaging operations. The CSA-200-24C is 2.0 inches in diameter by 1.63 inches in height, with 1/4-20 mounting threads. This 24-volt electromagnet draws 5.2 watts, weighs 1.5 pounds and offers 170 pounds of holding power. These magnets are durable, and are easily controlled by 12- or 24-volt power supplies, with none of the maintenance, noise or air pressure requirements of vacuum cups or grippers. Selecting an AEC DC-power magnet is a smart choice when you lift, position or hold ferrous parts. Complete your electromagnetic solution by selecting an automated power supply from our selection of DC-power supplies. Call AEC Magnetics to speak to an engineer who will be glad to assist in choosing the perfect electromagnet for your application.
If it's magnetic...you're at the right place! AEC Magnetics builds superior electromagnets in virtually any power configuration, size and holding power. These small circular electros are tremendous addition to automated parts handling and packaging operations. The CSA-200-24C is 2.0 inches in diameter by 1.63 inches in height, with 1/4-20 mounting threads. This 24-volt electromagnet draws 5.2 watts, weighs 1.5 pounds and offers 170 pounds of holding power. These magnets are durable, and are easily controlled by 12- or 24-volt power supplies, with none of the maintenance, noise or air pressure requirements of vacuum cups or grippers. Selecting an AEC DC-power magnet is a smart choice when you lift, position or hold ferrous parts. Complete your electromagnetic solution by selecting an automated power supply from our selection of DC-power supplies. Call AEC Magnetics to speak to an engineer who will be glad to assist in choosing the perfect electromagnet for your application.
Diameter (in)
2.00
Height (in)
1.63
Weight (lb)
1.50
Center to Center
-
Volts
24
Threads
1/4-20
Watts
5.2
Power
170
