CES-250-24C
Description

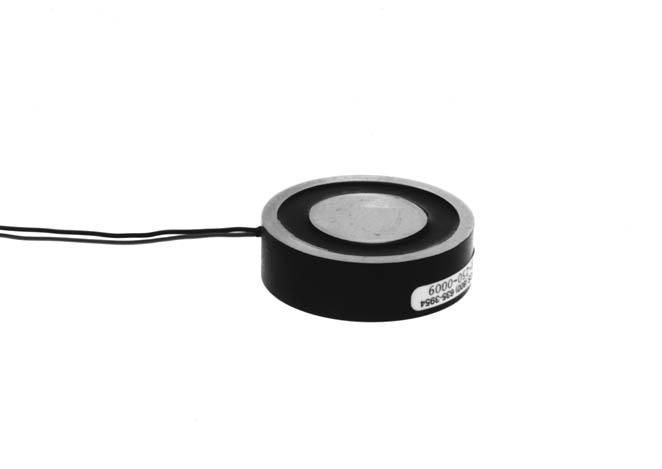

Don't get sucked in to investing in vacuum cups or grippers. Selecting an AEC DC powered magnet saves you from the maintenance, noise andn air pressure requirements. Go with one of our dozens of configurations and holding powers. This magnet, the CES-250-24C is 2.5 inches in diameter by 0.75 inches in height, with 1/4-20 mounting threads on 0.75 inch centers. This 24-volt electromagnet draws 11.5 watts, weighs 1.5 pounds and offers 200 pounds of holding power. These magnets are durable, and are easily controlled by 12- or 24-volt power supplies. The AEC DC-power magnet is a smart choice when you lift, position or hold ferrous parts. Complete your electromagnetic solution by selecting an automated power supply from our selection of DC-power supplies.
Don't get sucked in to investing in vacuum cups or grippers. Selecting an AEC DC powered magnet saves you from the maintenance, noise andn air pressure requirements. Go with one of our dozens of configurations and holding powers. This magnet, the CES-250-24C is 2.5 inches in diameter by 0.75 inches in height, with 1/4-20 mounting threads on 0.75 inch centers. This 24-volt electromagnet draws 11.5 watts, weighs 1.5 pounds and offers 200 pounds of holding power. These magnets are durable, and are easily controlled by 12- or 24-volt power supplies. The AEC DC-power magnet is a smart choice when you lift, position or hold ferrous parts. Complete your electromagnetic solution by selecting an automated power supply from our selection of DC-power supplies.
Diameter (in)
2.50
Height (in)
0.75
Weight (lb)
1.50
Center to Center
0.75
Volts
24
Threads
1/4-20
Watts
11.5
Power
200
