CEA-600M-110C
Description

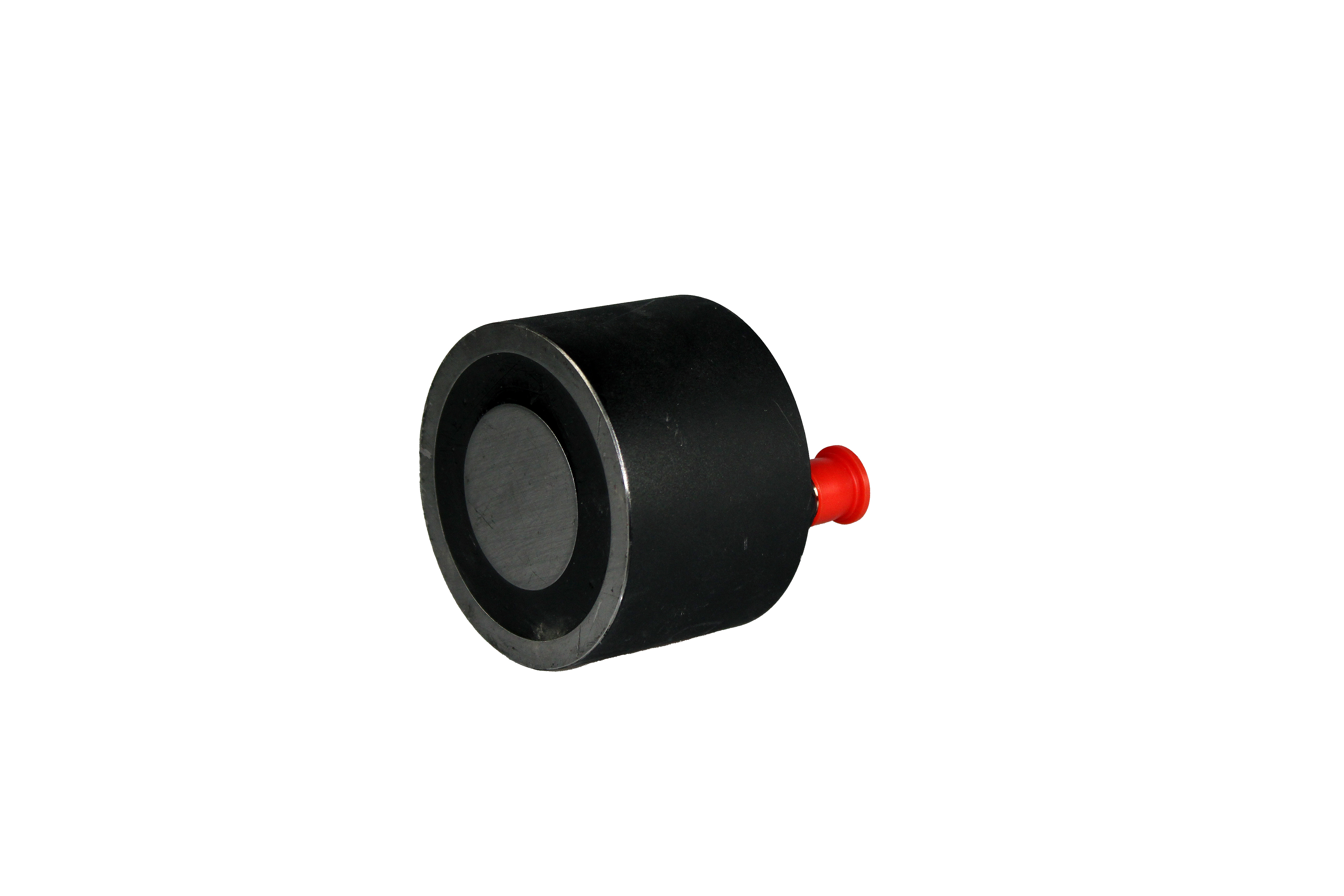

Select an AEC Magnetics CEA-600M-110C Heavy Duty Round 110-Volt DC electromagnet for lifting, positioning and holding smooth, flat ferrous surfaces. Click "View PDF" below to see the specifications. This AEC electromagnet is rated at 2200 pounds holding power, is 6.0 inches in diameter, 2.0 inches in height and it weighs 16 pounds. Threads: 12/13 on 2.0-inch centers. The CEA-600M-110C draws 44 watts and uses an AEC M-style cord. Our magnets are built to last and are guaranteed. In fact, every magnet that leaves our factory is tested. We are standing by if you would like assistance in finding the perfect magnet for your application.
Select an AEC Magnetics CEA-600M-110C Heavy Duty Round 110-Volt DC electromagnet for lifting, positioning and holding smooth, flat ferrous surfaces. Click "View PDF" below to see the specifications. This AEC electromagnet is rated at 2200 pounds holding power, is 6.0 inches in diameter, 2.0 inches in height and it weighs 16 pounds. Threads: 12/13 on 2.0-inch centers. The CEA-600M-110C draws 44 watts and uses an AEC M-style cord. Our magnets are built to last and are guaranteed. In fact, every magnet that leaves our factory is tested. We are standing by if you would like assistance in finding the perfect magnet for your application.
Diameter (in)
6.0
Height (in)
2.00
Weight (lb)
16.0
Center to Center
2
Volts
110
Threads
1/2-13
Watts
44
Power
2200
Cord
M-STYLE
