CES-500M-110C
Description

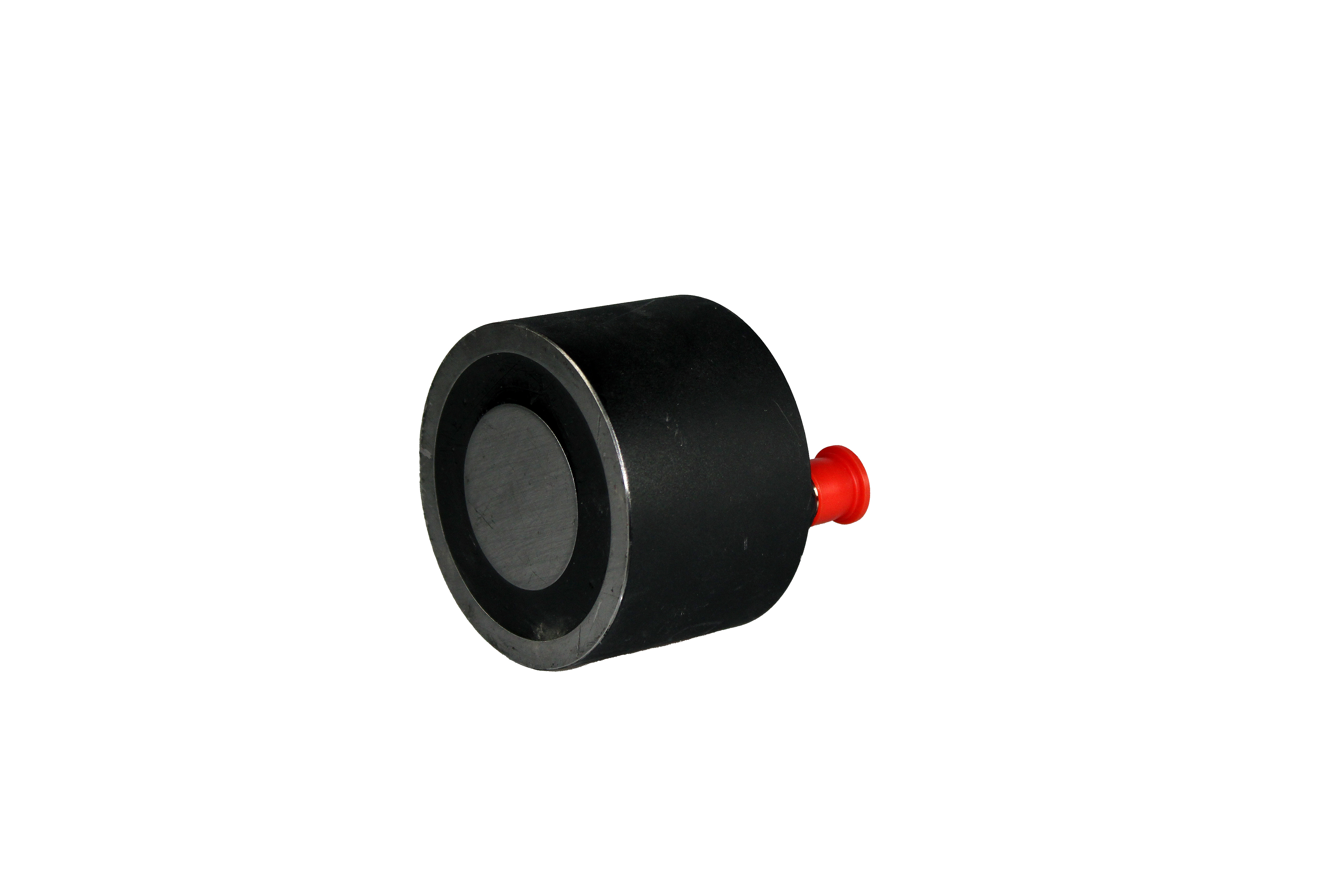

Delivering 1400 pounds of holding power to hold, lift and position smooth, flat ferrous material, AEC Magnetics' CES-500M-110C Heavy Duty Round 110-Volt DC electromagnet is 5.0 inches in diameter by 1.25 inches in height and weighs 9.5 pounds. It features a 3/8-16 thread on 2.0-inch centers, draws 25 watts and uses our M-style cords. This line of magnets offers a variety of options. Click on "view .pdf" below to see the engineering drawings and call us if we can help suggest another configuration for your application. (800) 635-3954.
Delivering 1400 pounds of holding power to hold, lift and position smooth, flat ferrous material, AEC Magnetics' CES-500M-110C Heavy Duty Round 110-Volt DC electromagnet is 5.0 inches in diameter by 1.25 inches in height and weighs 9.5 pounds. It features a 3/8-16 thread on 2.0-inch centers, draws 25 watts and uses our M-style cords. This line of magnets offers a variety of options. Click on "view .pdf" below to see the engineering drawings and call us if we can help suggest another configuration for your application. (800) 635-3954.
Diameter (in)
5.0
Height (in)
1.25
Weight (lb)
9.5
Center to Center
2
Volts
110
Threads
3/8-16
Watts
26
Power
1400
Cord
M-STYLE
