DCA-1000S-110C
Description

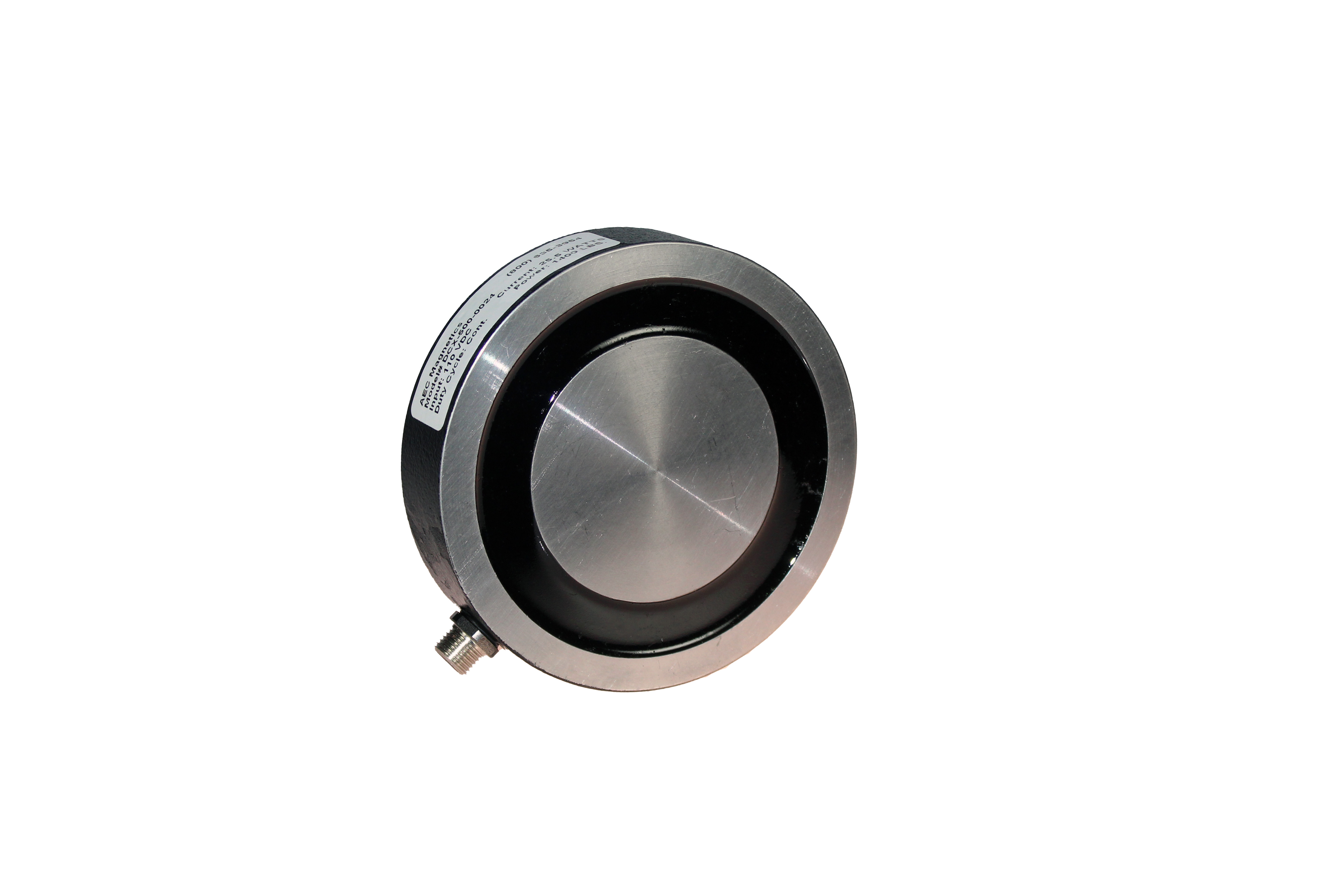

AEC Magnetics' DCA-1000S-110C Heavy Duty Round 110-Volt DC electromagnet lifts, positions and holds smooth, flat, ferrous materials. The magnet is rated at 4700 pounds holding power, and its dimensions are 10.0-inch diameter and 2.5-inch height with 5/8-11 threads on 3.0 on centers. It draws 61 watts and uses our S-style cord. See the engineering drawing by clicking on the "view .pdf" link, below. This line is option-rich; if you require a different wire outlet position, size, height, holding power, for instance, give us a call at (800) 635-3954 and our engineers will assist. Here, we don't sell magnets, we sell magnetic solutions.
AEC Magnetics' DCA-1000S-110C Heavy Duty Round 110-Volt DC electromagnet lifts, positions and holds smooth, flat, ferrous materials. The magnet is rated at 4700 pounds holding power, and its dimensions are 10.0-inch diameter and 2.5-inch height with 5/8-11 threads on 3.0 on centers. It draws 61 watts and uses our S-style cord. See the engineering drawing by clicking on the "view .pdf" link, below. This line is option-rich; if you require a different wire outlet position, size, height, holding power, for instance, give us a call at (800) 635-3954 and our engineers will assist. Here, we don't sell magnets, we sell magnetic solutions.
Diameter (in)
10.0
Height (in)
2.50
Weight (lb)
45.0
Center to Center
3
Volts
110
Threads
5/8-11
Watts
61
Power
4700
Cord
S-STYLE
