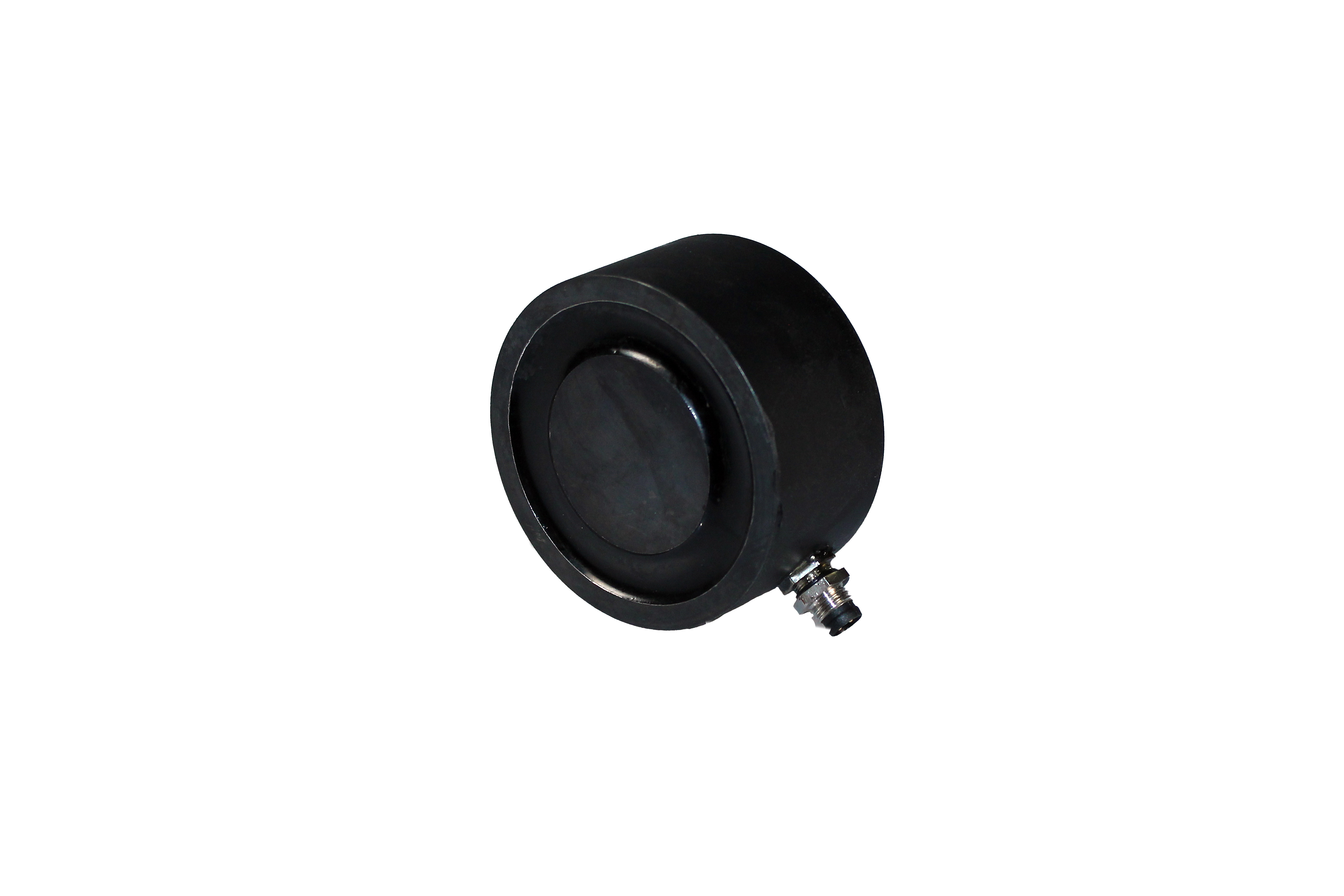

DCA-600M-110C
Description
Lift, position and hold ferrous parts easily and reliably with AEC Magnetics' DCA-600M-110C Heavy Duty Round 110-Volt DC electromagnets. We have many options available for wire outlet position, sizes and holding power, but this model supplies 2200 pounds of holding power in a magnet 6.0 inches in diameter by 2.00 inches in height. Configured with 1/2-13 threads on 2.0-inch centers, the DCA-600M-110C weighs 16.0 pounds and draws 44 watts. It uses our M-style cord. Our engineers will help you select the right magnet if you're not sure. Please call us at (800) 535-3954.
Lift, position and hold ferrous parts easily and reliably with AEC Magnetics' DCA-600M-110C Heavy Duty Round 110-Volt DC electromagnets. We have many options available for wire outlet position, sizes and holding power, but this model supplies 2200 pounds of holding power in a magnet 6.0 inches in diameter by 2.00 inches in height. Configured with 1/2-13 threads on 2.0-inch centers, the DCA-600M-110C weighs 16.0 pounds and draws 44 watts. It uses our M-style cord. Our engineers will help you select the right magnet if you're not sure. Please call us at (800) 535-3954.
Diameter (in)
6.0
Height (in)
2.00
Weight (lb)
16.0
Center to Center
2
Volts
110
Threads
1/2-13
Watts
44
Power
2200
Cord
M-STYLE
