CES-200-12C
Description

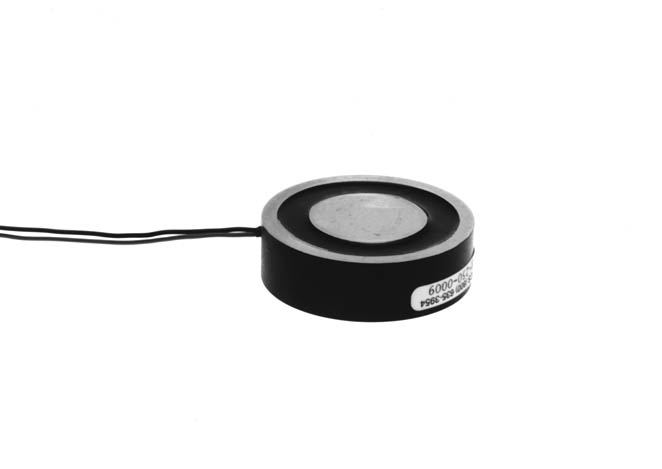

AEC's CES-200-12C is a sturdy, reliable magnet, 2.0 inches in diameter by 0.75 inches in height with a 1/4-20 mounting thread. It draws 7.0 watts, weighs 0.8 pounds and delivers 120 pounds of holding power. This, and AEC's entire line of 12-volt circular electromagnets, are great choices for automated parts handling, packaging operations and a myriad of other uses, with none of the maintenance, noise and air pressure requirements of vacuum cups or grippers, Be sure to select an AEC 12-volt DC power supply to complete your magnetic solution.
AEC's CES-200-12C is a sturdy, reliable magnet, 2.0 inches in diameter by 0.75 inches in height with a 1/4-20 mounting thread. It draws 7.0 watts, weighs 0.8 pounds and delivers 120 pounds of holding power. This, and AEC's entire line of 12-volt circular electromagnets, are great choices for automated parts handling, packaging operations and a myriad of other uses, with none of the maintenance, noise and air pressure requirements of vacuum cups or grippers, Be sure to select an AEC 12-volt DC power supply to complete your magnetic solution.
Diameter (in)
2.00
Height (in)
0.75
Weight (lb)
0.8
Center to Center
-
Volts
12
Threads
1/4-20
Watts
7.0
Power
120
