DSA-100-24C
Description

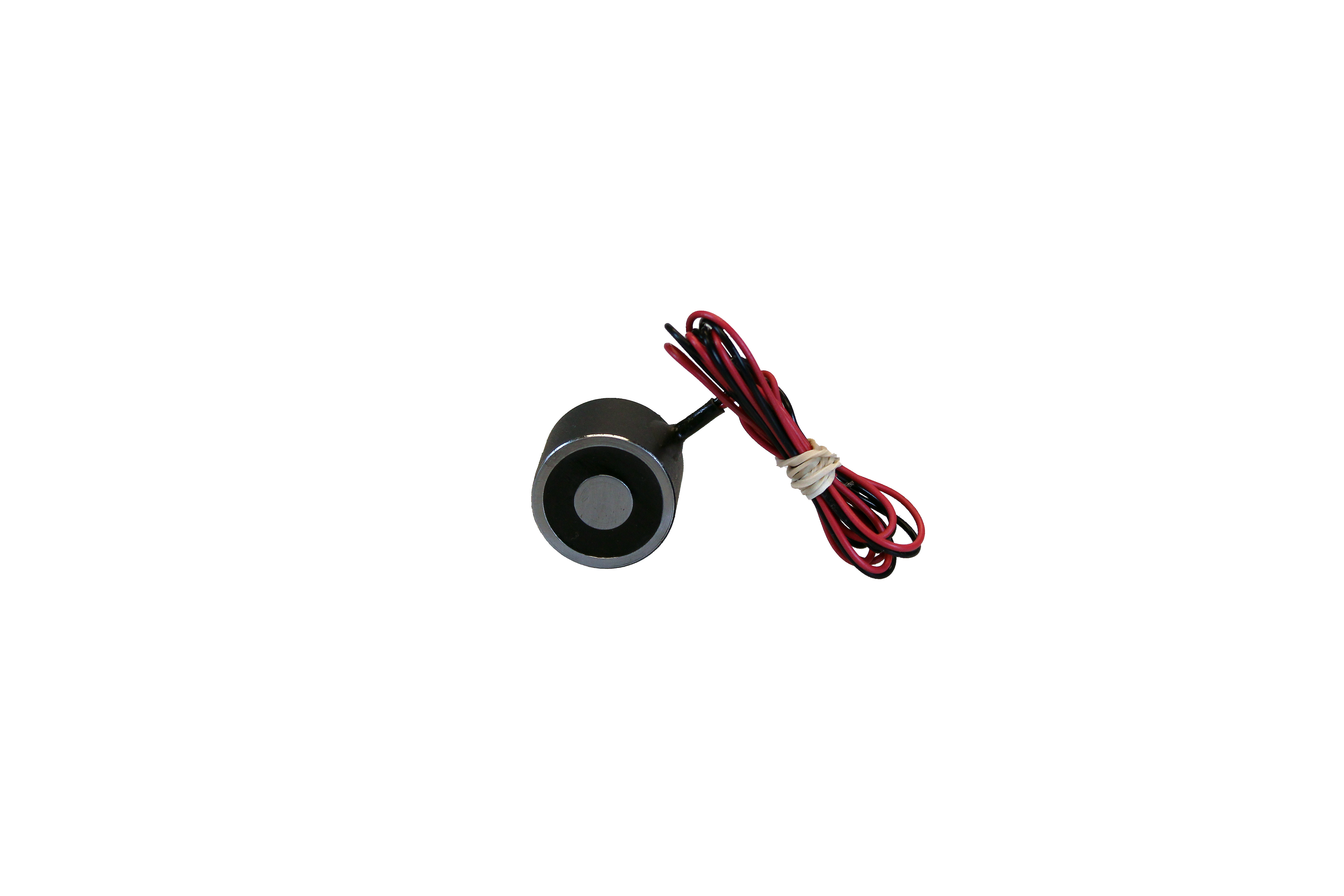

Small circular electromagnets are ideally suited for automated parts handling and packaging operations. The DSA-100-24C is 1.0 inch in diameter by 0.75 inches in height, with 10-32 mounting threads. This 24-volt electromagnet draws 3 watts, weighs 0.20 pounds and offers 15 pounds of holding power. These magnets are durable, and are easily controlled by 12- or 24-volt power supplies, with none of the maintenance, noise or air pressure requirements of vacuum cups or grippers. Selecting an AEC DC-power magnet is a smart choice when you lift, position or hold ferrous parts. Complete your electromagnetic solution by selecting an automated power supply from our selection of DC-power supplies.
Small circular electromagnets are ideally suited for automated parts handling and packaging operations. The DSA-100-24C is 1.0 inch in diameter by 0.75 inches in height, with 10-32 mounting threads. This 24-volt electromagnet draws 3 watts, weighs 0.20 pounds and offers 15 pounds of holding power. These magnets are durable, and are easily controlled by 12- or 24-volt power supplies, with none of the maintenance, noise or air pressure requirements of vacuum cups or grippers. Selecting an AEC DC-power magnet is a smart choice when you lift, position or hold ferrous parts. Complete your electromagnetic solution by selecting an automated power supply from our selection of DC-power supplies.
Diameter (in)
1.00
Height (in)
0.75
Weight (lb)
0.20
Center to Center
-
Volts
24
Threads
10-32
Watts
3.0
Power
15
