4300 Series Pot Magnets
small AEC logo

4300 Series Pot Magnets

AEC Magnetics

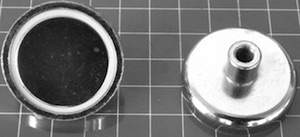

4300 series magnet 300Another handy magnet from the customer-favorite AEC 4000-series high-strength neodymium-iron-boron magnets, the 4300-series features female threads for mounting directly onto ferrous materials where drilling is not the best option.  See AEC Magnetics' other 4000-series magnets that feature male threads, through-hole and counter-sunk configurations.  Call us if you have any questions, our magnetic experts have been helping customers choose magnets for more than 50 years. Please note: all powers listed on our website are in pounds.

If it's magnetic...it's AEC!

Results 1 - 9 of 9

4300 Series Pot Magnets

Number PDF Diameter Height Mounting Clearance Power
4300-016 View 16.00 13.00 4.00 5.00 12
4300-020 View 20.00 15.00 4.00 7.00 20
4300-025 View 25.00 17.00 5.00 8.00 48
4300-032 View 32.00 18.00 6.00 8.00 75
4300-036 View 36.00 18.00 8.00 8.00 90
4300-042 View 42.00 20.00 8.00 9.00 150
4300-048 View 48.00 24.00 8.00 11.50 178
4300-060 View 60.00 30.00 10.00 15.00 248
4300-075 View 75.00 34.00 12.00 15.00 360
